What Are High-Pressure DTH Drill Bits and How Do They Work?

Imagine plunging into the earth with the force of a sledgehammer but with precision and finesse—this is what high-pressure DTH drill bits bring to the table.

High-pressure DTH drill bits are sophisticated tools designed to pierce through tough rock layers using high-pressure air or fluid systems. They maximize efficiency by transferring direct impact energy to the rock, making them perfect for demanding drilling environments.

As someone who's always been fascinated by the sheer power of machinery, I found these drill bits particularly intriguing. They're not just about brute force; it's about smart engineering. The design involves high-grade, wear-resistant materials like tungsten carbide, ensuring they endure even the harshest conditions without flinching. The intricacy lies in the configuration of the drill bit face and the placement of its carbide buttons, tailored for specific rock types and drilling requirements.

Then there's the remarkable hammer compatibility—these bits pair with high-pressure DTH hammers to deliver a powerful percussive force right where it's needed. Imagine trying to crack a nut with the perfect balance of strength and precision; that's exactly what these bits achieve when powered by compressed air or fluid, driving directly into the rock surface efficiently. It’s this synergy between design and function that makes high-pressure DTH drill bits a game-changer in industries like mining, construction, and geothermal drilling.

How are high-pressure DTH drill bits constructed?

I remember the first time I saw a high-pressure DTH drill bit in action. It was like witnessing a master craftsman at work, effortlessly cutting through rock.

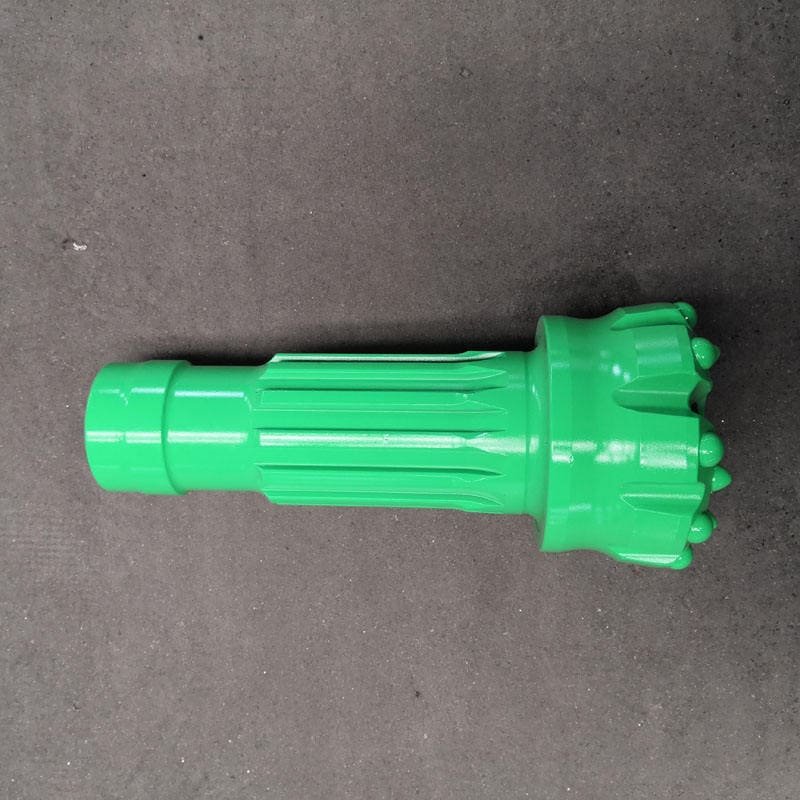

High-pressure DTH drill bits are crafted from top-tier materials like hardened steel and tungsten carbide, with specialized face designs and button configurations that ensure optimal performance in tough drilling conditions.

Material Construction

Have you ever wondered what makes these drill bits so resilient? It all starts with the materials—hardened steel and tungsten carbide. These aren’t just fancy words; they’re the backbone of the bit’s durability. I once had a conversation with a seasoned driller who swore by tungsten carbide, saying it’s the secret sauce that keeps these bits going strong even in the harshest conditions. The combination ensures that replacements are few and far between, saving time and resources in the long run.

Material	Purpose
Hardened Steel	Provides structural strength and resistance to deformation
Tungsten Carbide	Offers superior hardness and abrasion resistance

Explore high-grade materials¹ used in drilling technology.

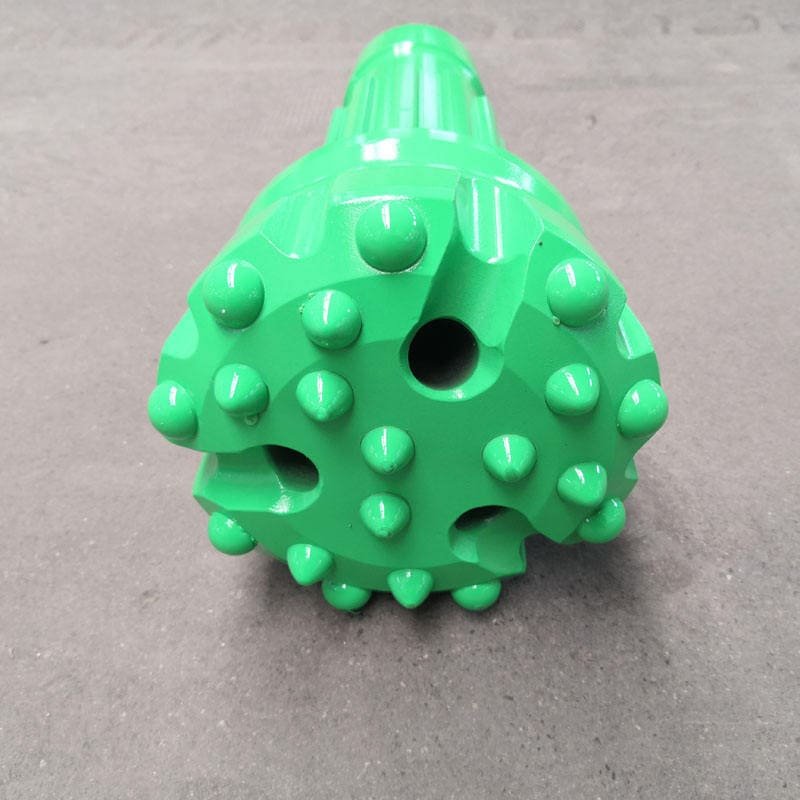

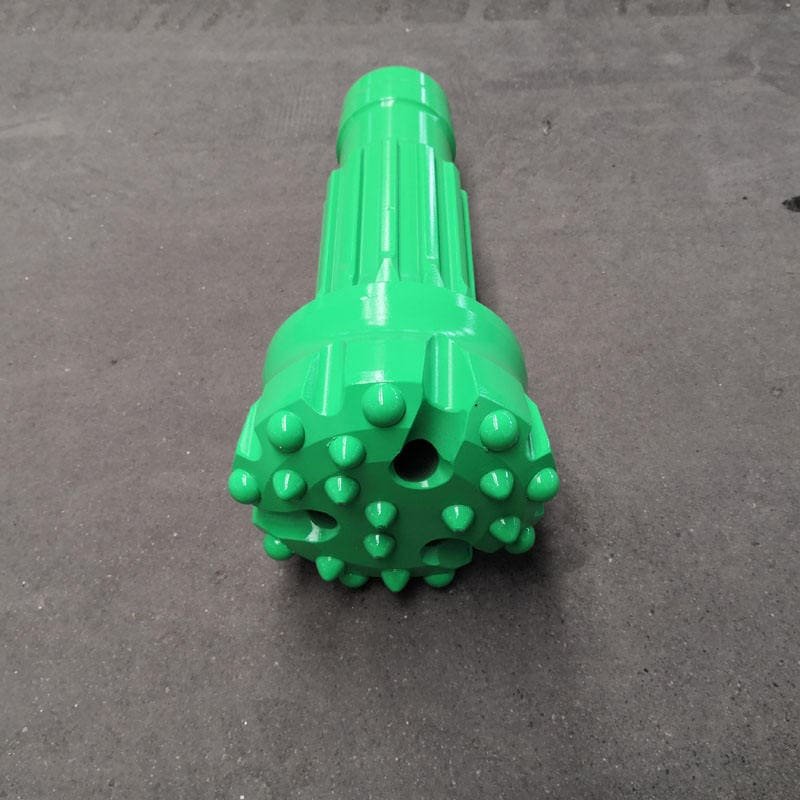

Bit Face and Button Configuration

The art of DTH drill bit design is all about the face and buttons. Imagine tailoring a suit; each design serves a specific purpose. Flat faces are like your comfy sneakers, perfect for soft to medium rocks. But when you’re up against hard rock, a convex face is your go-to, reducing stress on the bit like a good shock absorber on a bumpy road. And for those tricky medium to hard formations, a concave face offers stability, kind of like a good friend who’s got your back when things get tough.

• Flat Face: Ideal for soft to medium rock formations.
• Convex Face: Best for hard rock, offering reduced stress on the drill bit.
• Concave Face: Used for medium to hard formations, providing better stability.

Each configuration optimizes drilling efficiency and longevity by facilitating effective rock fracturing and debris removal.

Discover bit face designs² and their applications.

Hammer Compatibility

These bits are best friends with high-pressure DTH hammers. Operating at pressures between 10 to 35 bar (145 to 508 psi), they’re like a dynamic duo in the drilling world. This high-pressure environment enhances energy transfer to ensure that every ounce of force is directed exactly where it needs to be, allowing for deeper penetration through tough surfaces.

• Pressure Range: Critical for matching bit and hammer compatibility to ensure maximum efficiency.
• Energy Transfer: Direct application of energy to the rock surface enhances drilling depth and speed.

Learn about DTH hammers³ and their role in drilling operations.

Operational Features: Cooling and Cleaning

Keeping cool under pressure isn’t just good advice for life; it’s essential for drill bits too. High-pressure air or fluid does double duty here—not only powering the hammer but also cooling the bit to prevent overheating. I’ve heard stories from fellow drillers about bits lasting much longer when properly cooled. Plus, this process ejects debris from the hole, maintaining the bit’s integrity over time.

• Cooling: Essential to prevent thermal damage during operation.
• Debris Ejection: Keeps the drill path clear, reducing wear on the bit.

Understand cooling mechanisms⁴ in high-pressure drilling systems.

What Makes DTH Drill Bits So Efficient?

Ever wondered why some drill bits are the unsung heroes of tough drilling jobs?

DTH drill bits excel in efficiency thanks to their durable design, superior materials, and integration with high-pressure systems, enabling enhanced penetration, cooling, and debris removal in hard rock environments.

Material Excellence

I remember my first encounter with a DTH drill bit. It was like finding a tool made for superhumans, crafted from the toughest materials—hardened steel and tungsten carbide. These bits are no ordinary tools; they're built to withstand the harshest conditions, just like a trusty old jacket that never fails you in a storm.

Material	Properties
Hardened Steel	High tensile strength, wear-resistant
Tungsten Carbide	Extreme hardness, fracture-resistant

These materials give the drill bits the staying power they need, much like how my favorite sneakers seem to last forever, even with daily wear.

Advanced Bit Design

The design of these bits is like the secret sauce in grandma's best recipes—meticulously planned and perfectly executed. From flat to convex or concave, each bit face design serves a purpose. I once had to choose between a few designs for a project, and picking the right one felt like selecting a tool from Batman's utility belt.

Strategically placed carbide buttons make all the difference. They optimize the drilling speed and extend the life of the bit, much like how a well-timed coffee break can keep you productive all day. Advanced button configurations⁵ make rock fracturing more efficient, ensuring that energy is transferred effectively from the hammer to the rock surface.

High-Pressure Systems

High-pressure systems are the heart of these bits' efficiency. It's akin to how a turbo engine revs up a car for better performance. By attaching directly to the downhole hammer, compressed air or fluid powers both the hammer and keeps the bit cool. I learned this firsthand when I saw how overheating was prevented, keeping operations smooth and effective.

Operating at pressures from 145 to 508 psi, these systems maximize impact energy transfer to the rock surface. It’s like having an espresso shot to kickstart your morning—powerful and immediate.

Application Versatility

DTH drill bits are versatile warriors in the field. Whether it's mining, geotechnical drilling, or oil and gas exploration, they adapt just like a well-rounded athlete. I once worked on a geothermal drilling project where these bits maintained high penetration rates despite challenging conditions. It's like watching your favorite sports team perform under pressure—they just don't quit.

For instance, in geothermal drilling⁶, penetrating dense rock layers requires all these robust features to work in harmony. The operational features of DTH bits ensure they rise to the occasion every single time.

Where Are High-Pressure DTH Drill Bits Commonly Used?

Ever wondered where those mighty high-pressure DTH drill bits make their mark? Let me take you on a journey through the rugged terrains they conquer.

High-pressure DTH drill bits are extensively used in mining, construction, geothermal drilling, and oil and gas exploration. They are designed to tackle tough rock formations with high penetration rates and exceptional durability.

Mining Operations

I remember the first time I saw these high-pressure DTH drill bits in action at a mining site. It was fascinating to watch how they effortlessly cut through the dense rock formations, uncovering the hidden treasures of minerals buried beneath. Their design is ingenious, with button configurations⁷ and materials that resist wear and tear, ensuring the operation runs smoothly without unexpected delays.

Construction and Foundation Drilling

During a skyscraper project I worked on, the importance of deep foundations became crystal clear. These drill bits are crucial in such projects, allowing us to build stable structures by reaching incredible depths with precision. Their compatibility with hammers⁸ ensures that we hit the right spots every time, making construction not only efficient but also reliable.

Geothermal Drilling

Imagine harnessing Earth's natural heat for energy! Geothermal projects are a personal favorite of mine, partly because of the challenge. The high-pressure DTH drill bits we use can handle extreme temperatures and pressures without breaking a sweat, thanks to their cooling mechanisms⁹ that keep everything running smoothly.

Oil and Gas Exploration

While I don't spend as much time in oil fields, I’ve seen how these drill bits play a pivotal role in the early stages of exploration. They help identify potential sites by drilling through tough rock layers efficiently. The bits’ flushing capabilities¹⁰ are a lifesaver, keeping the path clear of debris and ensuring continuous drilling.

Application	Key Features
Mining	Durability, High penetration rates
Construction	Precision, Depth capability
Geothermal	Heat resistance, Cooling efficiency
Oil & Gas	Flushing capability, Exploratory efficiency

Understanding where high-pressure DTH drill bits excel helps industries like ours optimize their efforts in challenging environments. Whether it’s mining or building towering structures, these tools are indispensable allies in achieving success.

Why Choose High-Pressure DTH Drill Bits for Tough Drilling Jobs?

Imagine drilling through rock as tough as a diamond with the ease of slicing through butter. That's the magic of high-pressure DTH drill bits!

High-pressure DTH drill bits provide remarkable penetration speed, extended lifespan, and efficiency in hard rock drilling, reducing downtime. Perfect for mining, construction, and geothermal projects, their robust design enables deeper drilling with minimal interruptions.

Enhanced Penetration Rates

I remember the first time I witnessed high-pressure DTH drill bits in action. It was like watching a well-oiled machine cut through some of the hardest rock I'd ever seen. These bits are designed with tungsten carbide buttons¹¹ and aggressive face designs that transfer energy efficiently from the hammer to the rock. This means even in dense formations, they make quick work of what might otherwise take ages, saving both time and money on lengthy projects.

Durability and Longevity

It's like having a reliable old friend who never lets you down. The combination of hardened steel and tungsten carbide in these bits is no accident; it's a necessity. These materials endure harsh environments without wearing out quickly. This durability means fewer replacements and lower maintenance costs, letting you focus on the job at hand instead of constant repairs.

Efficient Cooling and Debris Removal

The thought of equipment overheating is enough to make anyone sweat. Luckily, high-pressure DTH systems have got it covered. Compressed air or fluid not only powers the hammer but also cools the bit and sweeps away debris. This continuous flow keeps everything running smoothly without interruptions from debris buildup or overheating.

Feature	Benefits
High Penetration Rates	Faster project completion, reduced labor costs
Durable Construction	Less frequent replacements, lower maintenance costs
Efficient Cooling System	Maintains bit integrity, prevents overheating
Aggressive Button Design	Optimizes energy transfer, enhances drilling efficiency

Versatility Across Applications

Whether you're deep in a mine or setting the foundations for a new skyscraper, these drill bits are like Swiss army knives of drilling. They’re perfect for a variety of industries, excelling in mining operations¹² and construction projects requiring deep foundation work. Their ability to pierce tough formations makes them indispensable for geothermal energy projects too.

Compatibility with High-Pressure Hammers

Matching these drill bits with high-pressure DTH hammers is like pairing the perfect wine with a meal. Together, they deliver the percussive force needed to tackle even the most stubborn rock. The high-pressure air or fluid works in harmony with these hammers to drive the bits deeper and more efficiently, making challenging conditions manageable.

Conclusion

High-pressure DTH drill bits are engineered for efficient rock penetration in tough environments, utilizing durable materials and advanced designs to enhance performance in mining, construction, and geothermal applications.
