What Are the Different Diameters and Lengths of DTH Drill Bits?

Did you ever have trouble picking the right drill bit for your task?

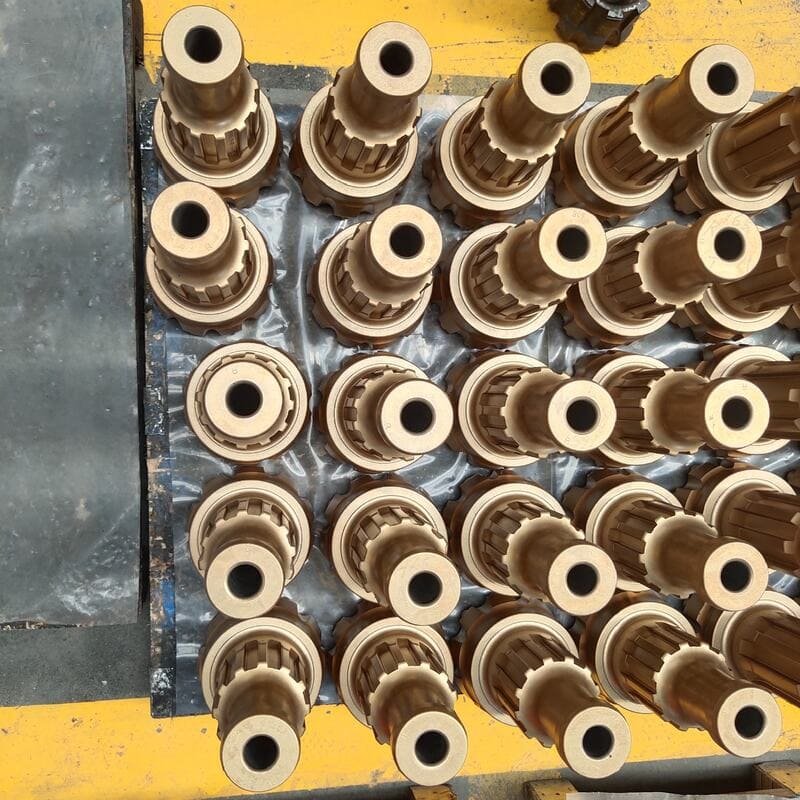

DTH drill bits have diameters from 76mm to over 254mm. This variety suits many industrial uses. The length of these bits stays mostly the same. However, the hammer size and depth of drilling might change it. Different rock types require either short or long gauge lengths.

I remember the first time I chose a DTH drill bit. I stood before many shiny tools. Each promised to break through rocks easily. I felt a bit confused. But I looked closely at the details. Short gauge lengths work fast in soft rocks. Long ones stay straight in hard rocks. Understanding these details is important. This knowledge separates slow projects from efficient ones. This really matters.

How Do Different Diameters Affect Drilling Efficiency?

Have you ever thought about why drilling with various sizes feels like an entirely different experience?

Picking the correct drill bit size is vital for drilling tasks. Smaller sizes often permit quicker penetration. This speed may reduce borehole stability. Larger drill bits provide better stability and last longer. However, they might slow down the drilling.

The Role of Size in How Fast a Drill Works

Choosing a drill bit for the first time puzzled me. Smaller bits are like a fast friend finishing quickly. They pass through soft rocks with ease. Speed is their strength. However, tough rocks cause them problems as they wear down fast and might even crack, leading to doubts about their usefulness.

In contrast, larger bits resemble a trusty old truck. They move slowly but handle tough rocks well. They are not quick, yet their strength is invaluable in hard conditions.

Stability of the Drill Hole

The stability of the drill hole is key. Larger bits are like a strong backbone, giving better stability and lowering collapse risk. This is vital for precise projects such as geothermal drilling¹. Smaller bits are more like a shaky table - useful but sometimes troublesome. They might weaken the hole, especially in broken or loose rocks. Finding the right balance between speed and project needs is crucial.

Costs of Operation

Let’s discuss costs - always a tricky topic. Smaller bits often mean lower starting costs as they use less power and are quick, similar to DTH drilling². However, like a fancy sports car, they need frequent repairs which cost money over time.

Larger bits, akin to a high-quality appliance, cost more at first but might save money eventually due to strength and good hole quality. Choosing a bit size means thinking about current needs and future costs; conducting cost-benefit analyses³ might be useful in some fields.

Finding the right drill bit size means balancing speed, stability, and cost—this choice greatly affects how well drilling operations go.

Why Is Gauge Length Important in DTH Drill Bits?

Drill bits hold hidden details, particularly in gauge length. Gauge length is really important.

Gauge length in DTH drill bits is important for keeping holes straight, fast and stable. A longer gauge drills straighter holes in hard rocks. It drills straighter. A shorter gauge drills faster in soft rocks. This balance changes speed and accuracy based on the task.

The Role of Gauge Length in Drilling

I remember the first time I learned about the importance of gauge length in DTH drill bits⁴. It felt like uncovering a secret that changed my drilling work. Gauge length is the part of the drill that controls how straight and even the hole is. This might sound technical, but it really impacts how well we drill. In mining, using a longer gauge length helps keep holes straight over long distances. This is vital for getting resources effectively. Precision makes a huge difference in project results.

Balancing Speed and Straightness

Finding the right balance between speed and straight holes is like an art. Shorter gauge lengths increase speed by touching the hole walls less. This is useful in softer rocks, letting us drill fast. But sometimes, this means less precision. Longer gauge lengths give stability and straighter holes, especially crucial in tough rocks where maintaining direction is essential.

Working with Different Rock Types

DTH drill bits⁵ are really adaptable to different rock conditions. Gauge length can change based on the situation. In softer rocks, shorter lengths save time. But in hard rocks, longer lengths are better as they keep the hole straight and avoid costly errors later on.

Customizing for Special Projects

Manufacturers can create drill bits for specific project needs by adjusting gauge length to match the project requirements, which can significantly improve drilling performance. When facing unique rock or tough specifications, custom options are very helpful. Knowing how gauge length affects work helps me choose or design the right drill bit for each task.

What Factors Influence the Selection of DTH Drill Bit Sizes?

Have you ever found yourself choosing the perfect drill bit for a project? Let me share my experience in picking the right DTH drill bit sizes.

Picking the correct DTH drill bit size depends on a few things. Rock hardness matters a lot. The size of the hole you want matters too. Drilling depth is also important. The specific job is another key point. Every factor helps you find the perfect bit. The right bit means good penetration and efficiency. Your drilling project needs to be successful. It really has to work well.

Understanding Rock Formation and Hardness

When I first worked with DTH drill bits, I quickly learned that rocks were like codes to crack. Softer rocks were easy; larger bits moved faster through them. Hard rocks needed smaller bits for the best results. This is very important in mining, where rock hardness can change suddenly. Understanding different rock types⁶ helped me figure it out.

Determining Borehole Diameter Requirements

I recall a construction job where accuracy mattered a lot. The hole size controlled everything—from bit choice to success. Choosing the right bit wasn't just about goals; it meant safety too. If you drill for construction or other reasons, matching bit size to the task is very important. Borehole planning considerations⁷ helped me stay on track.

Evaluating Drilling Depth and Application

Depth added complexity to my choices. Going deeper taught me the need for special bit designs. Long projects needed bits with certain lengths for stability. The right bit needed to match both depth and material being drilled. Deep drilling offered really useful tips, as outlined in deep drilling strategies⁸.

Considering Operational Environment and Equipment

The environment was a big factor—sometimes it was hot, sometimes really humid. Bits had to work well in these situations. It wasn't just about the bit but also about matching it with the right equipment, which stopped problems and extra wear. Equipment compatibility tips⁹ were my guide for choosing based on tools and weather.

Can I Get Custom Sizes for DTH Drill Bits?

Have you ever felt that your drilling project lacks the right piece? Custom DTH drill bits could be your real solution.

Yes, you can get special DTH drill bit sizes. Manufacturers design these unique solutions for specific projects. They offer flexibility and improved performance. Such options are really useful in mining and construction industries.

Understanding the Need for Customization

In industries such as mining, construction, and quarrying, standard DTH (Down-The-Hole) drill bits might not always meet the specific demands of unique projects. I have been deep in tough projects where standard DTH drill bits just don't work - pun intended! In tasks like mining or quarrying, unique problems need unique tools. Custom sizes offer a way to enhance efficiency and effectiveness by aligning the drill bits with the particular rock formation and depth requirements. This customization can lead to improved drilling performance and cost savings in long-term operations.

The Customization Process

The road to a custom drill bit starts with a deep conversation. Manufacturers who provide custom DTH drill bit sizes often start with a consultation phase, where they assess the client's specific needs. I worked on a hard site where the maker spent many hours with us. We shared details about our soil and drilling needs. This direct method gets the final product just right. Crafting the bit mixes art with science, so it matches our exact size and project plans. The actual manufacturing process¹⁰ then involves designing and producing drill bits with the desired diameter and length that match the project's specifications.

Benefits of Custom DTH Drill Bits

The gains from custom DTH drill bits are real. Custom DTH drill bits can be designed to enhance penetration rates and ensure hole straightness, which is crucial in complex drilling environments. They increase penetration and keep the hole straight, helping significantly in tough spots. On one project, we had hard minerals that would have ruined standard tools; our custom bit saved us from damage. They also offer flexibility in challenging geological conditions, where standard sizes might not suffice. It reduced downtime and maintenance costs, keeping everything running smoothly.

Finding the Right Manufacturer

Picking the best manufacturer is very important - I learned this the hard way! Choosing a manufacturer capable of producing high-quality custom DTH drill bits is essential. Key considerations include their experience in the industry, technological capabilities, and customer service. You need someone with experience, technology skills, and good service. I searched through reviews and asked for advice before choosing a supplier who met our tight deadlines and exact needs. It's advisable to research thoroughly¹¹ before committing to a supplier to ensure compatibility with your operational needs.

Custom sizes are indeed a viable option; they solve specific drilling challenges by providing tailored solutions that address specific challenges faced in various drilling projects. By opting for custom DTH drill bits, companies can optimize their operations, achieving better results and higher efficiency in their drilling endeavors.

How to Choose the Right DTH Drill Bit for Your Project?

I remember the first time I chose a DTH drill bit. It was overwhelming! Selecting the correct one is very important.

Selecting the correct DTH drill bit needs knowledge of your project's rock type, desired borehole size and depth. Consider the bit's form and gauge length depending on the rock's hardness. The needed speed to penetrate is important too. These factors are crucial for great drilling results. Efficiency depends on them much.

Understanding Rock Type and Conditions

I still remember standing in the rugged landscape of my first big project, feeling overwhelmed by the challenge. Knowing your rock type is like having a secret map. Hard rocks need bits with strong carbide tips to handle impacts, just like preparing for tough jobs. Softer rocks are much easier and bits for speed are your best friends. Soft rocks¹². Best friends.

Selecting the Right Borehole Diameter

Borehole diameter might sound technical. Imagine squeezing through a narrow tunnel or walking in a wide corridor. Both have their purposes. Small diameters, around 76mm, work for precise tasks like small construction projects. I've been there when every millimeter mattered. Large diameters, up to 254mm, suit big mining tasks. Bigger is often better. The right borehole size is key for reducing wear and keeping things efficient, minimizing equipment wear¹³.

Evaluating Bit Shapes: Convex vs. Concave

Bit shapes remind me of picking shoes - different styles for different needs. Convex bits are your sneakers for fast work in soft materials. Concave bits are sturdy hiking boots for hard, deep terrains. This choice greatly affects drilling speed¹⁴ and accuracy - just like the right shoes matter for comfort and performance.

Importance of Gauge Length

Gauge length may sound complex. Think of it as selecting the right length of a fishing rod. Short gauge lengths are good for quick work in soft rocks, like casting a line easily in calm waters. Long gauge lengths help keep holes straight in hard places, like fishing in rough seas—a very important choice when precision is needed.

Customizing for Specific Needs

Projects can bring unexpected challenges. Standard solutions might not always help. I've been in situations needing customized solutions - like a tailored suit for a special occasion. In these cases, talking to manufacturers for special bit designs can tackle specific problems like unusual rocks or deep needs so projects go smoothly.

Conclusion

DTH drill bits vary in diameter from 76mm to over 254mm, with lengths influenced by application depth. Gauge length affects penetration and hole straightness, crucial for efficient drilling.
