What Are the Various Face Designs for DTH Drill Bits?

I remember the first time I encountered DTH drill bits, they seemed like magical keys to the earth's mysteries. Each design had its own story.

DTH drill bits have various face designs—flat, convex, concave, drop center, double gauge, and dome—each tailored for specific drilling conditions. These designs influence penetration rates, flushing efficiency, and hole straightness, crucial for overcoming diverse geological challenges.

The complexity of choosing the right drill bit face design can be daunting. But once you get the hang of it, it feels empowering. Each design—from flat to dome—plays a unique role in optimizing drilling performance. I’ve learned that understanding these nuances can make a big difference in project outcomes, whether you're dealing with hard rock or soft soil. It’s like choosing the right tool for a job; when you know which one to pick, everything else just falls into place. Let’s dive into what makes each design tick and how they can impact your drilling success.

How Does Face Design Impact Drilling Performance?

Ever wonder how the design of a drill bit can make or break its performance?

Face design in drill bits plays a crucial role in drilling by affecting penetration rates, flushing efficiency, and hole straightness. Each design is tailored to specific conditions, ensuring optimal interaction with rock formations and enhancing overall drilling performance.

The Role of Face Design in Drilling

When I first started learning about drill bits, I was amazed at how something as seemingly simple as the face design could have such a profound impact on performance. It's like choosing the right pair of shoes for a marathon—get it wrong, and you’re in for a painful experience. Face design determines how a drill bit interacts with various rock formations, focusing on crucial aspects like penetration speed, durability, and efficiency in cuttings removal. By understanding these designs, I can make better decisions when selecting the right bit type¹ for different geological challenges.

Types of Face Designs

1. Flat Face: When I was faced with drilling through hard, abrasive rocks, the stability offered by a flat face design was invaluable. It minimizes hole deviation and simplifies flushing, much like navigating a straight road with clear directions.

2. Convex Face: For those medium-hard rocks, the convex design feels like hitting the sweet spot. It directs energy to the center, offering a balanced wear resistance and penetration rate, ensuring those holes stay on track.

3. Concave Face: I’ve found this design particularly effective across various rock types, especially homogeneous formations. Its ability to direct cuttings towards the bit's center helps maintain excellent hole straightness.

4. Drop Center Face: This design reminds me of focusing sunlight through a magnifying glass—intense and effective. It’s perfect for soft to medium-hard rocks, enhancing penetration by channeling energy directly into the rock.

5. Double Gauge Face: For tackling extremely hard rocks, I rely on this design for its added carbide protection on the gauge edges. It provides durability and helps maintain consistent hole diameter.

6. Dome Face: In high-stress scenarios or deep holes, the dome face is like a trusty old friend—reliable and stress-distributing. It prevents fractures by spreading stress evenly across the bit face.

Practical Applications and Considerations

Choosing the right face design is like solving a complex puzzle that requires a deep understanding of geological data and drilling objectives. It's fascinating to see how innovations in this field continue to evolve, pushing performance metrics like rate of penetration (ROP) and tool longevity to new heights.

Advances in Drill Bit Technology

I’ve been keeping an eye on recent studies that focus on real-time adaptations of face designs based on changing rock conditions. These advancements are poised to revolutionize drilling applications by significantly enhancing performance outcomes.

Which Face Design Is Best for Hard Rock Conditions?

Diving into the world of drill bits, especially for hard rock conditions, can feel like navigating a rocky path—literally!

For drilling in hard rock conditions, a flat face design is generally considered the most effective. It offers stability and efficient penetration, reducing hole deviation. This design's robust structure is crafted to efficiently tackle abrasive and tough rock environments.

Understanding the Flat Face Design

When drilling through hard rock formations, the flat face design² stands out due to its ability to maintain stability and enhance penetration rates. I remember my first encounter with hard rock drilling; it was like facing a formidable opponent in an epic battle. The flat face design became my trusted ally. Its straightforward surface seemed to crush through the rock with precision, ensuring we stayed on course without deviation. The minimalistic nature of the flat face ensures efficient flushing of rock cuttings, reducing the risk of blockages that can delay operations.

Double Gauge Face for Extreme Conditions

In scenarios where rocks are not only hard but also highly abrasive, the double gauge face³ becomes an excellent choice. This design offers additional carbide protection on the outer edges of the bit, which is essential for maintaining the diameter of the hole as the bit wears down. In some cases, I’ve found myself working in environments where the rocks not only felt like they were made of iron but were also incredibly abrasive. This design was like having an extra layer of armor, helping maintain consistency and extending service life.

Comparing Face Designs

While both flat and double gauge faces are suited for hard conditions, choosing between them often depends on factors such as how abrasive the rock is and how fast I want to drill. The flat face is generally preferred for its straightforward efficiency in crushing rock and minimizing deviation. But when dealing with extreme abrasiveness, I lean towards the double gauge face—it might take a bit longer, but its durability pays off in maintaining consistent hole diameter.

It's important to consider these factors alongside geological surveys and operational goals to make an informed decision. Understanding how each design interacts with specific rock types can significantly impact whether a drilling project turns into a success story or a cautionary tale.

Considerations for Drill Bit Selection

Selecting the right drill bit involves more than just understanding face designs. Other factors like bit material⁴, drilling speed, and flushing mechanisms also play crucial roles in achieving optimal results. By leveraging these elements, especially in tough environments characterized by hard and abrasive rocks, I've been able to enhance drilling efficiency and keep our operations running smoothly.

How Can a Convex Face Design Enhance Your Drilling Efficiency?

Ever wondered how a simple design tweak can revolutionize your drilling experience?

A convex face design in drilling tools enhances efficiency by focusing impact energy at the center, boosting penetration rates and keeping holes straight, particularly in medium-hard rock environments. This design offers a perfect blend of wear resistance and performance, minimizing the chances of getting stuck in fractured rocks.

Enhanced Penetration Rates

I remember the first time I witnessed the magic of a convex face design during a drilling project. It was like watching an artist at work, with the bit slicing through the rock with remarkable precision and speed. The secret? It concentrates the impact energy right at the center, just like a focused laser beam. This means faster penetration rates, particularly in medium-hard rocks where every second counts. For us operators, this translates to getting the job done quicker and cutting down on operational costs.

But it’s not just about speed. The real game-changer is how it handles fractured formations. Picture this: you're drilling away, everything's going smoothly, and then—wham! You're stuck in a tricky fractured zone. With a convex face design, this scenario becomes less of a nightmare. It reduces the risk of getting stuck, ensuring smoother drilling operations⁵ and saving us from those dreaded downtimes.

Balance Between Wear Resistance and Efficiency

One of the things I appreciate most about the convex face design is its ability to strike a delicate balance between durability and performance. It's like having a reliable old friend by your side—always there, performing consistently without letting you down. The curved surface is clever; it distributes wear evenly, giving the drill bit a longer lifespan.

In my experience, this means fewer replacements and lower maintenance costs—something every drilling operator dreams of. It's not just about prolonging the bit's life; it's about maintaining high productivity levels without sacrificing tool durability. When you're on a project where time and efficiency are paramount, this balance can make all the difference.

Maintaining Hole Straightness

Maintaining hole straightness is crucial for any drilling operation, and the convex face design excels here too. I once worked on a project where precise hole trajectories were non-negotiable. The curvature of the bit kept everything aligned perfectly, like a well-oiled machine.

This ability to keep things straight is invaluable, especially in environments where deviations could lead to significant setbacks or increased costs. With a convex face design, achieving better alignment⁶ becomes less of a challenge, ensuring your projects stay on track without unexpected hiccups.

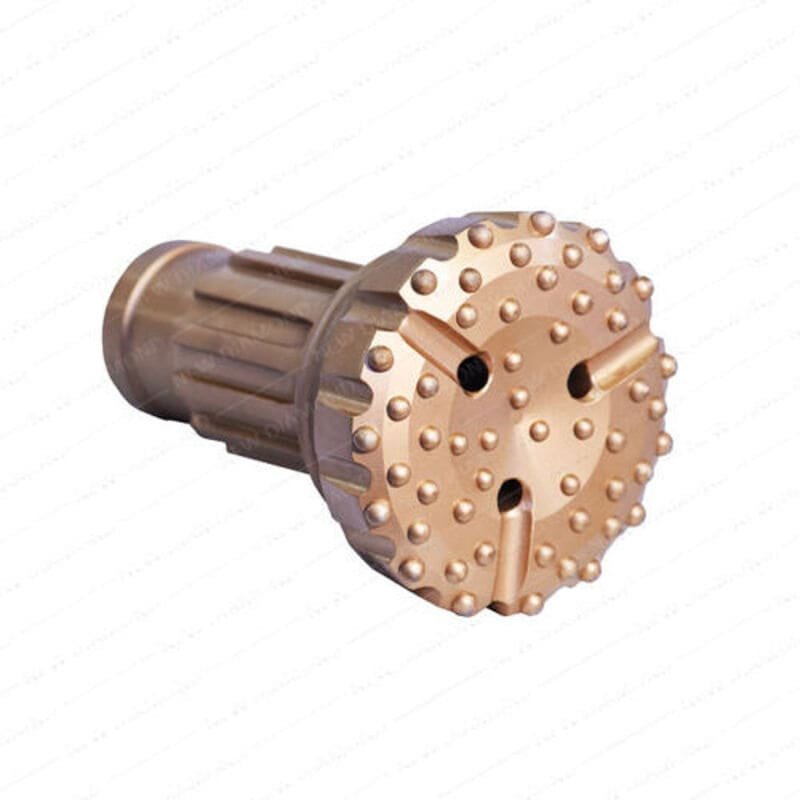

Why Choose a Concave Face for Precision Drilling?

Ever wonder how to achieve perfect precision in drilling? Let me share a secret: it's all about the right tools, like the concave face drill bit.

A concave face drill bit is your go-to for precision drilling. Its unique recessed center design offers unparalleled control over hole deviation, directing rock cuttings efficiently and maintaining straightness. This results in enhanced penetration rates, making it ideal for long, accurate drilling in homogeneous rock formations.

Understanding the Design

You know, when I first stumbled upon the concave face design, I was amazed by its simplicity and effectiveness. It features a recessed center, which isn't just for show—it's what gives this tool its edge in performance. Think of it as a natural guide that keeps your drill bit on track, which is crucial when you're dealing with projects that require high precision⁷ and accuracy. It's like having a GPS for your drill!

Benefits of Concave Face Bits

1. Improved Hole Straightness: I can't stress enough how essential it is to have the drill bit stay centered. With the concave design, it minimizes deviation, ensuring you don’t end up with an off-course drill hole. This is a lifesaver in projects where even a tiny misstep can cause big headaches.

2. Efficient Cuttings Removal: One thing I've noticed is that the concave design is fantastic at directing rock cuttings towards the center. This boosts the flushing process and reduces clogging, making your drilling job more efficient.

3. Versatility Across Rock Types: While it's particularly effective in homogeneous formations, I've used concave bits across various rock types. It’s like having a multi-tool in your toolkit, ready for any challenge.

Practical Applications

In industries like mining, construction, and oil extraction, precision is everything. When I used concave face drill bits in mining, the difference was night and day. They maintain a straight path so well that they become indispensable in these sectors. It directly impacts productivity and resource management⁸, ensuring you extract every ounce of value.

Considerations for Use

While I love the advantages of concave bits, picking the right size and type for your specific application is crucial. Consider factors like rock type, desired hole depth, and drilling speed. Trust me; consulting with drilling experts or checking geological surveys can give you insights into whether a concave face bit is your best bet. It’s all about matching the right tool to your project’s needs.

What Are the Differences Between Drop Center and Dome Faces?

Ever wondered how drop center and dome faces measure up in the world of drilling? Dive in to discover which one might just be your perfect match.

Drop center faces are your go-to for quick penetration in softer rocks, concentrating energy where it counts. Dome faces, on the other hand, spread stress evenly, making them ideal for deeper, more stressful drilling. Your choice hinges on the unique demands of your drilling adventure.

Understanding Drop Center Faces

I remember the first time I encountered a drop center face bit—its unique design caught my attention immediately. The inset center seemed almost like a secret weapon, focusing the drill's energy into the rock with pinpoint accuracy. This feature shines in soft to medium rock formations, where speed is of the essence. It's like driving a sports car on an open road; you want to go fast and handle smoothly. The drop center face excels in removing cuttings efficiently, keeping things tidy and conserving energy.

A drop center face might be preferred for projects⁹ that require rapid drilling in softer materials, where speed is crucial, and precision might be less of a priority.

The Dynamics of Dome Faces

On the flip side, dome faces remind me of those sturdy old sedans built for endurance and reliability. Their smooth, rounded design distributes stress evenly across the bit face, which is a lifesaver in high-stress or deep-hole drilling. Imagine working under pressure—everything needs to go right, and there’s no room for error.

I've seen how dome faces minimize stress fractures, making them invaluable in demanding conditions. For deep or high-pressure drilling scenarios, they're like the trusty friend who always has your back.

For projects involving deep or high-pressure drilling scenarios, the dome face design¹⁰ offers a more balanced approach, reducing the likelihood of bit failure and optimizing operational stability.

Choosing Between the Two

Deciding between a drop center and a dome face is like choosing between agility and endurance. If your project demands swift penetration through softer rock, then the drop center is your star player. But if you're venturing into challenging environments where durability is key, the dome face won't let you down.

Consider what your project needs—be it rock hardness, desired penetration rates, or drilling depth—before making a call. Both designs have their own strengths and can significantly influence the outcome of your work. For more detailed guidance on selecting the right drill bit face design, you might find additional resources available online¹¹ helpful.

Conclusion

DTH drill bits feature various face designs—flat, convex, concave, drop center, double gauge, and dome—each optimized for specific geological conditions to enhance drilling efficiency and performance.
